OPC Server Simulator - allows to test your OPC applications with this free and simple OPC server

Test It!

For Windows 2000 - Windows 10 (2016) (incl. Server, x86 and x64). Latest version: 1.0.5 build 1108. .

OPC Server Simulator - allows to test your OPC applications with this free and simple OPC server Download OPC Server Simulator

Brief description:

This free and simple OPC DA2 server allows you to add multiple OPC tags and specify their names, data types, and values. Tag values can be updated from time to time. For numeric data types, the server can use several built-in functions to generate random values.

You can interactively change tag values and their quality. You can monitor the connected clients and the data requested by them.

What problems can be solved with OPC Server Simulator?

This OPC server allows you to quickly test your or our software that works with OPC. For the duration of the test, it can replace the OPC server that works with the real hardware. Possibly, this simple server will start much faster than any other server of yours, which could allow you to do your development and initial tests in less time.

Getting started is easy. OPC Server Simulator is ready!

After the installation process you need to configure the gateway. Please refer to the documentation.


Screenshot:

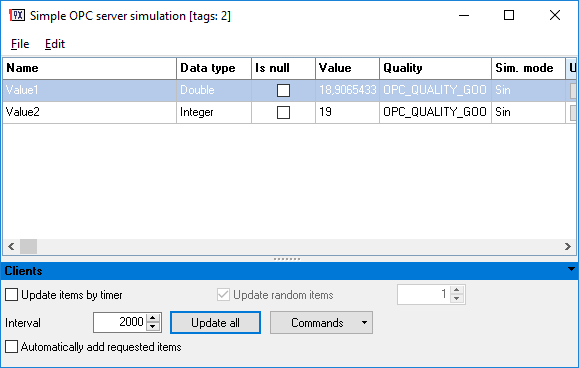

Main window

Features:

Flexible. You can add variables with different data types and simulation modes.

Easy to use. You can see all settings of the program in one window, which allows you to quickly change any parameter.

Portable. You can save all server settings and the OPC tags list to a file, and then load them from that file.

Data types. The program supports different data types for OPC tags.

Emulations. Any tag value or all tag values can be updated by timer.

Tag tree. Tags can have a hierarchy structure.

Read/write. You can read OPC tag values and write a new value to an OPC tag.

Supporting all Windows version. The program works on all Windows version starting from Windows 2000, including servers and x64.
