Parsing and processing data from PBX. Tutorial.
I can't seem to be able to write the log of our local PBX system into my SQL 2000 database. I have installed the ODBC plug-in and have tested the ODBC connection through the ODBC administrator and everything seems to be working.
Now, I wish to parse and write a log of the data to a file in my database.
Fig.1. PBX system captured data by the serial data logger software
It is assumed that:
You have configured all communication parameters (baud rate, number of data bits, flow control etc) in the data logger and you are able to receive all data without communication errors.
The image (Fig.1) above shows a simple data flow. Each record has a fixed size and a fixed position for each item. As an example, for a single record, all non-printable characters with a code less than 20 Hex are selected for display. The indicated radio buttons are set as shown below.
Fig.2. PBX data logger. Serial data view setup
If your data flow is fast, then ASDL will not split your data into separate lines and you will get one long line on the screen. For this reason, it is necessary to tick the "Wrap words" tick box. This effectively adjusts the line length to the width of the window (Fig.3, pos #1).
Fig.3. PBX data logger. Serial data word wrap
Click the "OK" button and attempt to receive data from a serial port. You should get something like the image below.

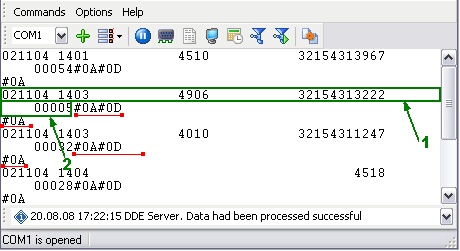

Fig.4. PBX data logger. Data received.
This is the other view of the data received. Notice that all non-printable characters were replaced with their code i.e. #0D. It is clear from the data screen above, that the data block (within the green rectangle) ends with #0A#0D#0A (underlined by red). In this example, our data block contains two parts namely, 1 and 2. The part #2 was adjusted to the width of the window. Both of these parts should be interpreted as a single whole.
We are now ready for configuring of the modules. First, select the "ASCII data query and parser" plug-in (Fig.5, pos. #1) from a drop-down list. Then, enable a parsing option for data received (Fig.5, pos. #2) and select the necessary data export plug-ins. The DDE server (Fig.6, pos. #3) will help to check the accuracy of the parser's configuration. The "ODBC database" plug-in will write the data to the Microsoft SQL Server 2000 (Fig.6, pos. #4).
Fig.5. PBX data logger. The data parser plug-in setup.
Fig.6. PBX data logger. Data export plug-ins setup.
Next, open the ASCII parser and query configuration window (click the "Setup" button near the drop-down box as indicated on pos.#1 on Fig.5). A dialog window will appear on the screen (Fig.7) about the data packet.
Fig.7. PBX data logger. Parser configuration window.
The configuration process should be very simple if you have examined your data flow in the data logger window (Fig.4). You should type in the same as in the data logger window in fields 1 and 2. Field #1 marks the beginning of the data block and the field #2 marks the end. In the example, our data block does not contain a start marker. Therefore, this field is left empty. The values to be typed in here are as underlined in red in Fig.4 above.
The next tab is a very important part of the parser configuration. The data parser uses this information for data extraction from the data block. In the example, the data block contains 4 data items (see Fig.1) namely: date and time, calling party number, called party number and call length in seconds, which should be separated out to different variables. Later, these variables will be used in the data export and will be placed in different columns of our SQL2000 database.
Fig.8. PBX data logger. Parser items.
Any new items may be added by clicking the "Add item" button (Fig.8, pos. 7). Before adding an item the program will ask you about an item description. You can type any characters here, which will help you to remember a variable's content. For this example all 4 variables with their corresponding descriptions have been added.
Each parser item has a number of properties:
All other items have the same parameters, a position, a length and a data type of other.
In the next tab, you can specify basic format options as per (Fig.9). If you had specified the data type "String" in the item's parameters, then the first two options allow you to remove blank spaces from a value. Our called and caller number contain blank spaces at the start of a value. The second option allows you to convert the date time string to a field with the date time data type. We specified MMDDYY HHNN here, according to the specification above. For a detailed description of formatting characters, please, see the help file.
Fig.9. PBX data logger. Format of items.
Other options are unnecessary in our case, because all our items do not have the date or time data type.
Click the "OK" button and close the parser configuration window. Then click the "OK" button in the options window.
Now that our parser is ready it is time for testing it. Connect your device and power it on if necessary. Check to see if you are able to receive a data block from the specified serial port. If the parser had been correctly set up, then you should see all parser items names and their values (Fig.10) in the DDE server window below.
Fig.10. PBX data logger. DDE server window.
All parser items are now ready for export to the SQL2000 database. You can read about it in the second part.
