Advanced NMEA Data Logger

Trust In Confidence!

For Windows 2000 - Windows 10 (2016) (incl. Server, x86 and x64). Latest version: 3.2.8 build 1020. .


MQTT

Latest version: 4.0.4 build 1017. .


You can use the "MQTT" module with our loggers to receive and publish data using the MQTT protocol. MQTT (Message Queue Telemetry Transport) is a simplified network protocol that runs over TCP/IP. It is used to exchange messages between devices based on the publish-subscribe pattern.

Our logger acts as a client, so it requires a broker server running on your local network or on the Internet (for example, a cross-platform Mosquitto server). You can subscribe to topics and receive data from them using the "MQTT" module only if you use it together with our Data Logger Suite. Usually data are sent in text format, so the logger can convert text values to another data type in order to simplify their further handling. For example, you can log the data received to a file or a database.

You can publish data using any logger that supports data export. The program can also convert data types. If you use the "MQTT" module together with our Data Logger Suite, you can automatically group data from different sources and simultaneously publish them at another location.

Download | Documentation

How to enable this plugin

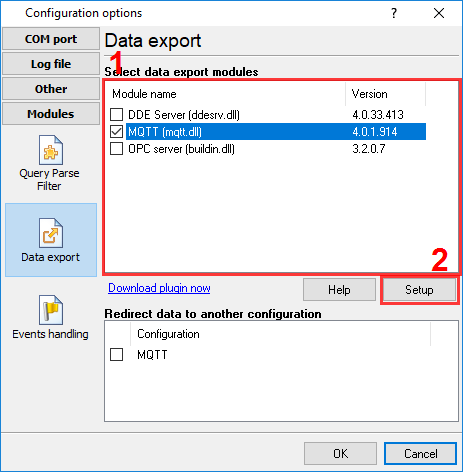

The figure below shows how to select the plugin on the "Modules" page.

Selecting the plugin

Fig.1. Selecting the plugin.

How to configure the plugin

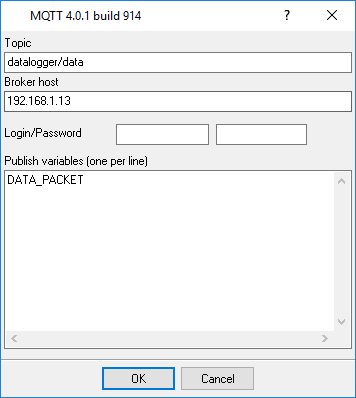

The figure below shows how to configure the plugin to poll the device every 15 seconds. Of course, you may change the poll interval as you want.

Configuring the plugin

Fig.2. Configuring the plugin.

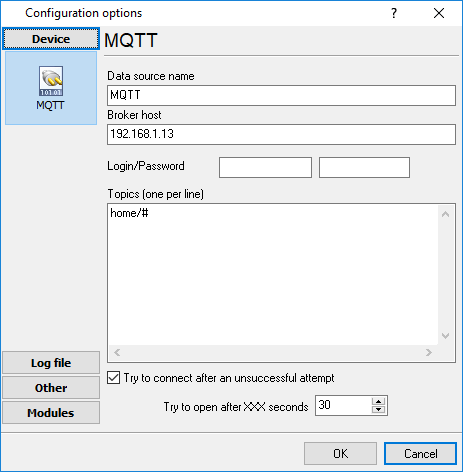

Configuring MQTT (3)

Fig.3. Configuring the plugin.
