Data flow diagram

This diagram may help you to understand the flow of data within our software and a place of each module. All modules are described in following chapters.

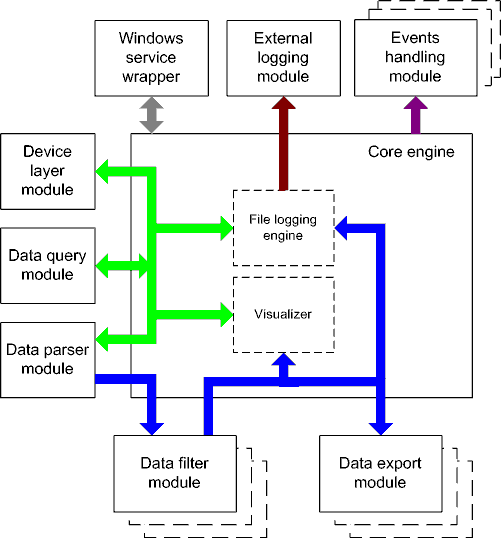

data-flow-diagram

Fig. 1.2.1 Data flow diagram



History:



        - Binary flow of data (RAW, unformatted data).



        - Parsed data (formatted data). The data flow was been separated to data packets and variables. Each data packet can be interpreted as a row, and each variable can be interpreted as a column.



Wires with other colors mark other relations with unstructured data flow.
