Advanced USB Port Monitor - Screenshots

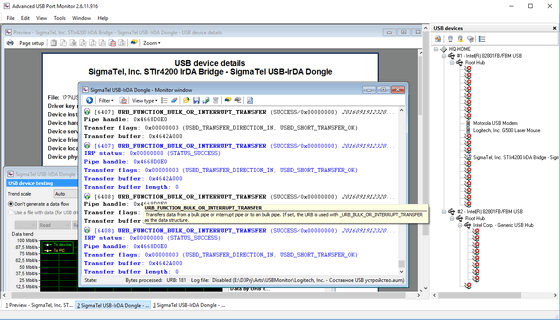

1. Main menu - contains items for quick access to all main functions of the program;

2. Monitor window - allows you to monitor the traffic transferred between the host and the device;

3. USB devices window - shows all connected devices;

4. Performance monitor window - allows you to evaluate the performance of your device during a data transfer;

5. A tooltip in the monitor window;

6. Taskbar - shows the titles of all windows open in your workspace;

7. Status bar - shows a hint for each interface element when the mouse pointer is over it or in some cases shows the progress of some operation.

large view

large view

large view

large view
