LG ipLDK-20. SMDR/CDR data format and connection settings

This data is being extracted with help of the "Advanced PBX Data Logger" software only. It may not applicable for other software titles.

The following settings allows to capture all call types: incoming, outgoing, cancelled etc.

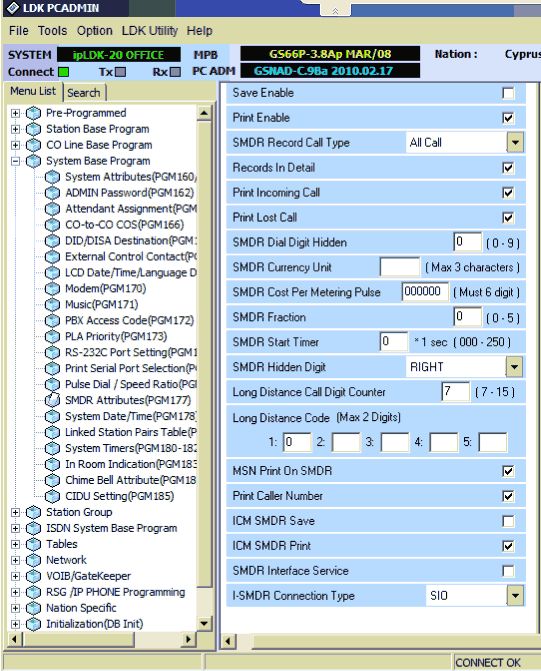

SMDR settings

Data items

Description	Data type	Column name
Call ID	string	FLAG1
Extension	string	EXT
Line	string	TRUNK
Call duration	datetime	CALL_DURATION
Call duration (s)	integer	CALL_DURATION_S
Call time	datetime	CALL_TIME
Call type	string	CALL_TYPE
Direction	string	DIRECTION
Phone	string	DIALED_PHONE
Ring	datetime	RING
Act	string	FLAG3
Count	string	FLAG4
Cost	float	COST

Note: Products and companies mentioned here are used only for definition and identification purposes and can be trademarks and/or registered trademarks of the respective companies.
