Panasonic KX-NS300-NS500-NS700. SMDR/CDR data format and connection settings

This data is being extracted with help of the "Advanced PBX Data Logger" software only. It may not applicable for other software titles.

Printing Out SMDR Using LAN Port

Systems compatible: Panasonic KX-NS1000, Panasonic KX-NS700, Panasonic KX-NS500, Panasonic KX-NS300, Panasonic KX-NSX1000, Panasonic KX-NSX2000

1. Go to 11.1 Maintenance - Main.
2. Set Port to LAN.
3. Under Print Information select which items you would like to get in the SMDR output.
3.1 Date format: MM-DD-YY.
3.2 Time format: 24H.

4. Click on SMDR Options tab.
5. Note the default SMDR Port Number and Password. (These can be changed at you own discretion, but for this document we will use the default settings.)

Configuring PBX Data Logger

Our software should work in the TCP client mode. It means that our software will initiate connection with the PBX and the PBX will work as a server. Add one or several PBX IP addresses here (the IP address of the Panasonic PBX). The port number should match the port that you have defined within the PBX (2300 in the example below).

6. Configure our software to send password to the PBX.

By default, the Panasonic NS1000 system requires a username/password (default: SMDR/PCCSMDR) to connect to the TCP/IP feed.

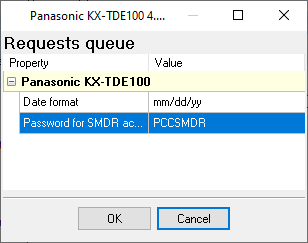

You must activate the "Panasonic KX-NCP1000" data query plugin (the plugin name on the image below is just an example), click the "Setup" button and specify the password:

Note: this feature is available in the Trial, Professional and Enterprise versions only.

Activating SMDR records for all calls

On the "SMDR options" page just enable condition codes to enable call logging for all stages "RC" and "AN". "RC" stands for received and "AN" for answered.

Data items

Description	Data type	Column name
Call date	datetime	CALL_DATE
Call time only	datetime	CALL_TIME2
Call date and time	datetime	CALL_TIME
Extension	string	EXT
CO	string	TRUNK
Direction	string	DIRECTION
Call type	string	CALL_TYPE
DID name and number	string	DID
Caller number	string	CALLER_PHONE
Caller name	string	FLAG3
Dialed number	string	DIALED_PHONE
Ring	datetime	RING
Call duration	datetime	CALL_DURATION
Call duration (s)	integer	CALL_DURATION_S
Cost	float	COST
Account code	string	ACC
Condition code	string	FLAG1
