Samsung OfficeServ 7070 - SMDR/CDR call logging & accounting

This data is being extracted with help of the "Advanced PBX Data Logger" software only. It may not applicable for other software titles.

Samsung OfficeServ 7070 programming Device Manager software

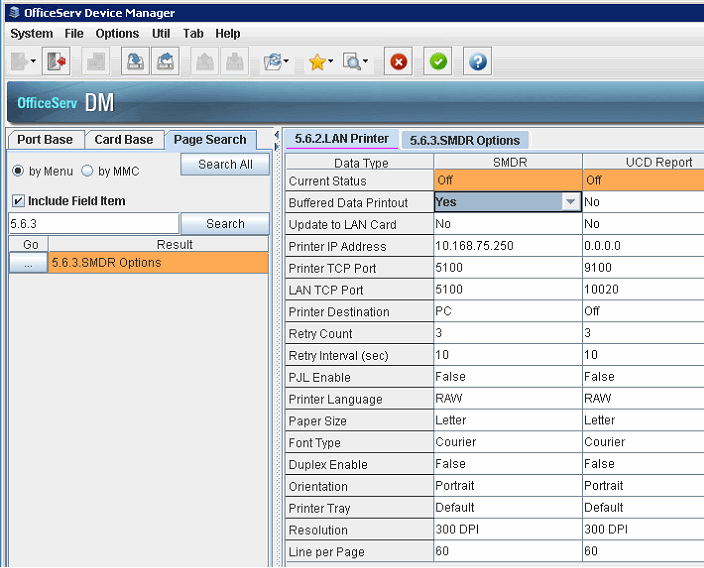

Fig.1 LAN settings

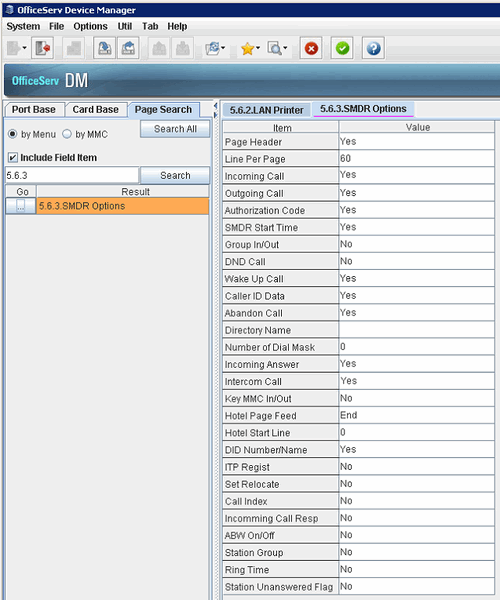

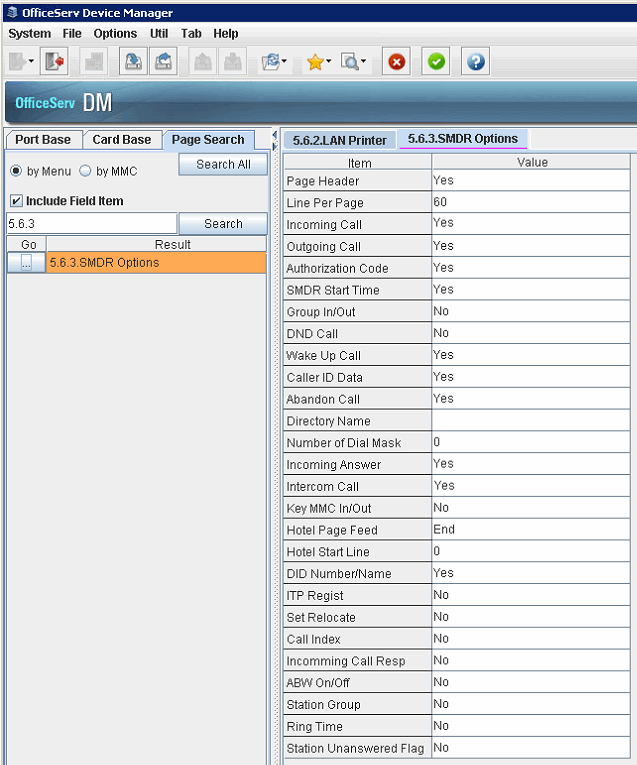

Fig.2 SMDR settings

Configuring PBX Data Logger as a TCP client

Our software should work in the TCP client mode. It means that our software will initiate connection with the PBX and the PBX will work as a server. Add one or several PBX IP addresses here (the IP address of the Aastra 470). The port number should match the port that you have defined within the PBX (1080 in the example below).

1. Add a new configuration with the TCP data source (if you didn't it before).

2. Configure the TCP settings as shown below.

Selecting the correct parser for 3COM NBX (XML, v6)

Data items

Description	Data type	Column name
External	string	EXT
Authorization code	string	AUTH
Trunk	string	TRUNK
Call time	datetime	CALL_TIME
Call duration	datetime	CALL_DURATION
Call duration (s)	integer	CALL_DURATION_S
Call type	string	CALL_TYPE
Direction	string	DIRECTION
Dialed phone	string	DIALED_PHONE
DNIS	string	DNIS
Account	string	ACC
Carier code	string	FLAG3
Cost	float	COST
Clip number	string	CALLER_PHONE
Clip name	string	FLAG4

Interested in reports for PBX usage?

The PBX Reports utility that we provide includes a variety of reporting options such as manual, scheduled, and email, alongside a built-in web server and more. Implement your call accounting system for Samsung OfficeServ 7070. Check our PBX Reports utility.

Want PBX call logs in a database?

The standard functionality includes the logger capturing and exporting SMDR or CDR data in real-time to your database. Check our article about call logging to a database.
