NEC SV9100 (General Overseas Format): setup and data format

This page shows how to get call records out of the NEC SV9100 (General Overseas Format) into Advanced PBX Data Logger: the connection settings, the parser to select and the 12 fields the logger extracts for reports or a database. The settings apply to our logger; other call accounting software may expect a different configuration.

Quick facts

NEC SV9100

This PBX outputs SMDR data via IP.

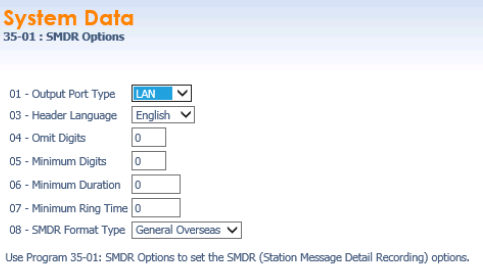

You can easily change the setting above using the WebPro interface.

1. Open your favorite browser.
2. Navigate to the http://192.168.1.220/
3. Login using the installer name and password (by default: sltech/12345678).

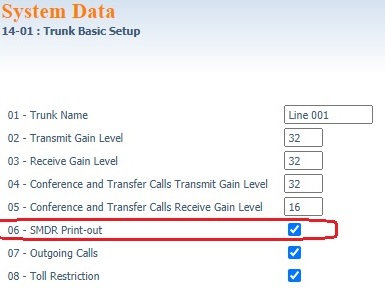

4. Change the settings below.
5. Apply the changed settings.
6. Reboot SV9100.

Settings from the manufacturer's documentation

Taken from NEC-SV9100-SMDR-INFO. Values are those stated in the documentation; confirm them against your firmware release.

Record format notes

• RS232 serial SMDR output exists as an option but is not supported on DT300/DT700 terminals
• SMDR requires a connection to the GCD-CP10 LAN card/connection
• Non-representable special characters are converted to underscore in SMDR output

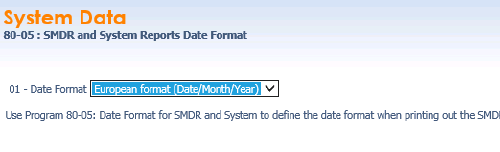

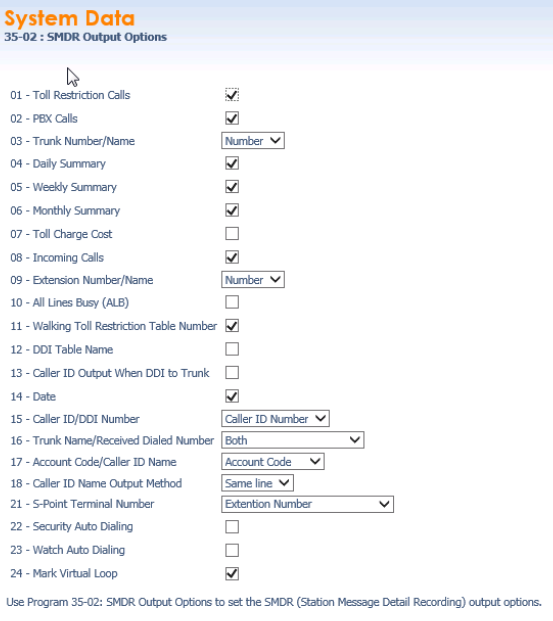

• Date field on/off is controlled by Program 35-02-14 (0=no DATE column, 1=DATE column present), not 80-05-01
• Sample class codes seen in output include POT (outgoing) and PIN (incoming); 'NO ANSWER' appears in the Account field when unanswered
• Caller ID name output uses 16 or 24 characters depending on the Program 35-02-18 view option, and can wrap to a 'NEXT' second line

Configuring PBX Data Logger as a TCP client

Our software should work in the TCP client mode. It means that our software will initiate connection with the PBX and the PBX will work as a server. Add one or several PBX IP addresses here (the IP address of the NEC SV9100). The port number should match the port that you have defined within the PBX (60010 in the example below).

1. Add a new configuration with the TCP data source (if you didn't it before).

2. Configure the TCP settings as shown below.

192.168.1.220

60010

192.168.1.220:60010

Selecting the correct parser for NEC SV9100 (General Overseas Format)

NEC SV9100 (General Overseas Format)

NEC SV9100 (General Overseas Format)

Data items

Sample record

As delivered by the system; phone numbers, names and public addresses are masked.

08 PIN   15:22 24/07 001  00:00:28 201                         0:02
09 PIN   15:56 24/07 001  00:02:13 201                         0:03
10 PIN   17:01 24/07 001  00:00:10 3898                        0:29

NEC programming software

NEC SL1000, SL1100, SL2100, SV8100 and SV9100 systems are programmed with NEC's PCPro application or the WebPro browser interface built into the system. PCPro comes from NEC or your dealer, not from AGG Software. The SMDR settings on this page are made there; PBX Data Logger receives the records they switch on.

Reports and a database

Once records arrive, the logger writes them to a text file or to any ODBC database in real time, or hands them to the PBX Reports utility for manual, scheduled and e-mailed reports with a built-in web server. See exporting call log data to a database for the database setup.
