Panasonic KX-TD500 v2 (ring) - SMDR/CDR call logging & monitoring
This data is being extracted with help of the "Advanced PBX Data Logger" software only. It may not applicable for other software titles.
Pinout and wiring
| PBX (25 pin male) | PC (9 pin female) | PC (25 pin female) |
|---|---|---|
| 1 | GND | 1 |
| 2 | 2 | 3 |
| 3 | 3 | 2 |
| 6 | 4 | 20 |
| 7 | 5 | 7 |
| 20 | 6,7,8 | 5,6,8 |
RJ45 - Rear Serial Port B Adapter Pinout
| RJ45 pin | Name | DB9 pin |
|---|---|---|
| 1 | RTS | 7 |
| 2 | DTR | 4 |
| 3 | TXD | 3 |
| 4 | GND | 5 |
| 5 | RI | 9 |
| 6 | RXD | 2 |
| 7 | DCD/DSR | 1 or 6* |
| 8 | CTS | 8 |
Configuring a COM port
The COM port number should match the number in your system. You can check the correct port number in Devices Manager → Ports.
1. Add a new configuration with the RS232 data source (if you didn't it before).

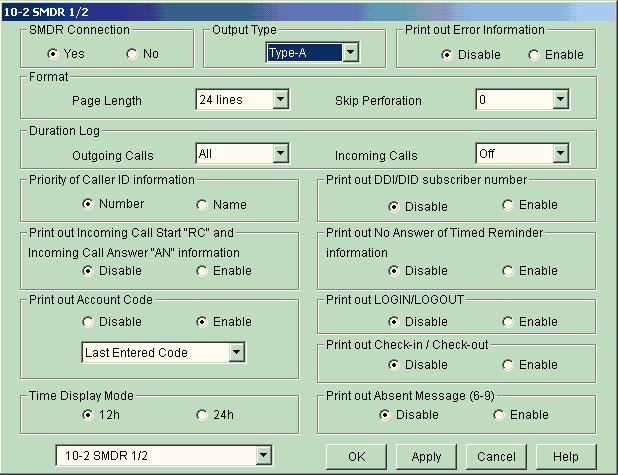

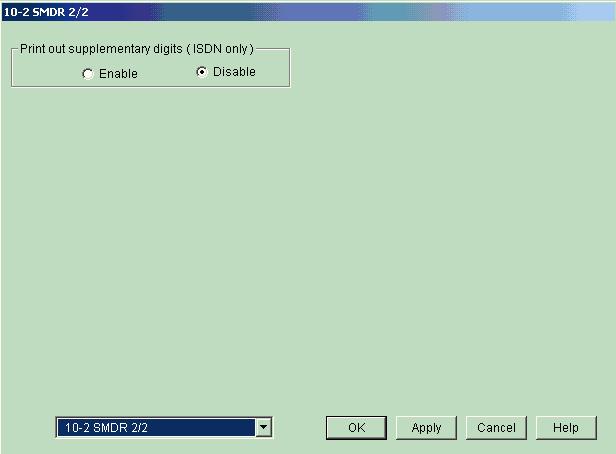

2. Select the COM port and configure the communication settings for your PBX corresponding to your PBX settings.
Selecting the correct parser for 3COM NBX (XML, v6)
3COM NBX (XML, v6)
3COM NBX (XML, v6)
Data items
| Description | Data type | Column name |
|---|---|---|
| Call date | datetime | CALL_DATE |
| Call time only | datetime | CALL_TIME2 |
| Call date and time | datetime | CALL_TIME |
| Type | string | CALL_TYPE |
| Extension | string | EXT |
| CO | string | TRUNK |
| Direction | string | DIRECTION |
| Dialed number | string | DIALED_PHONE |
| Caller | string | CALLER_PHONE |
| Ring | datetime | RING |
| Call duration | datetime | CALL_DURATION |
| Call duration (s) | integer | CALL_DURATION_S |
| Account | string | ACC |
| Call condition | string | FLAG1 |
